Aviation Connector
Original price was: $3.00.$2.80Current price is: $2.80.

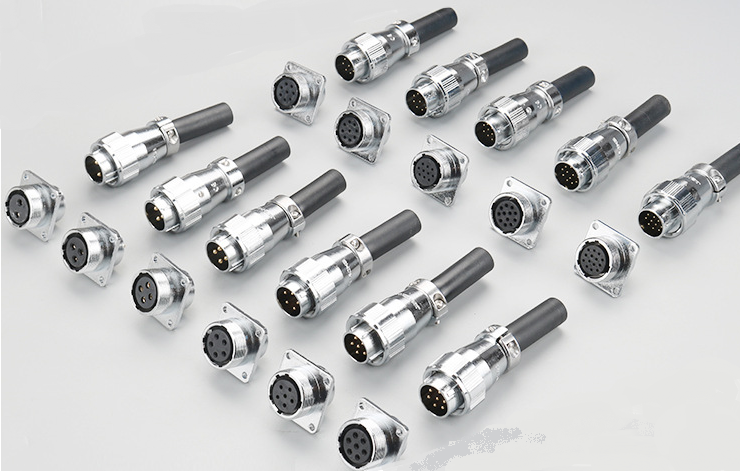

TP20 Male To Female Socket Cable M20 2 3 4 5 6 8 9 1012 14 Pin Butt Joint Aviation Connector Plug
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Model Number | Aviation Connector Male and Female | |||
| Plastic Material | Bakelite | |||

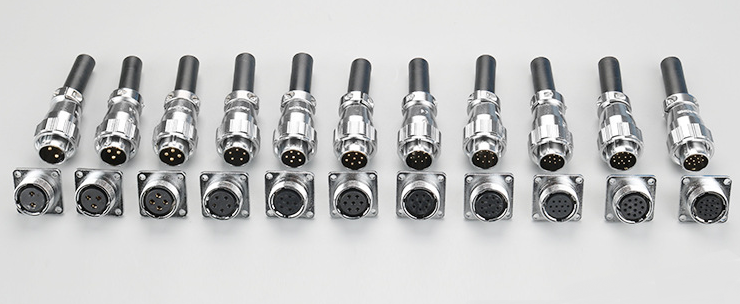

| Pin Number | 2 3 4 5 6 7 8 9 10 12 14 Pin | |||
| Shell Material | Zinc Alloy | |||

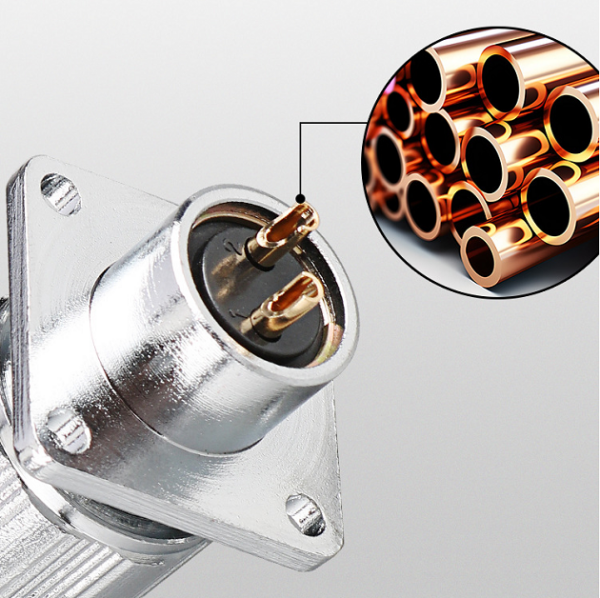

| Contact Material | Brass、Phosphor Bronze | |||
| Contact Plating | Tin or silver platedover Ni | |||
| Current Rating | 2-4P（25Amps）、5-7P（10Amps）8-14P（5Amps） | |||
| Rated voltage | 500V | |||
| Withstanding Voltage | AC 1500Vmin/Minute | |||
| Insulation Resistance | 1500MΩ Min | |||
| Contact Resistance | 1M MΩ Max | |||
| Operation Temperature | -40°C to +80°C | |||

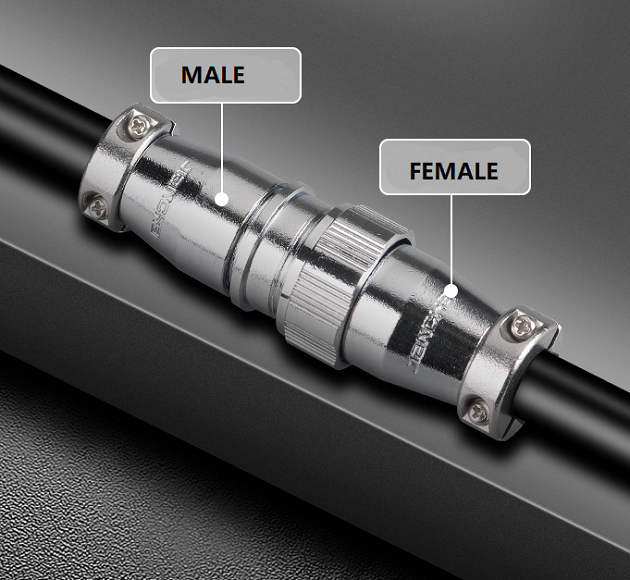

| Male and female link | screw thread link | |||
